12PSDW-C Diesel Fuel Injection Pump Test Bench, Common/Standard Type

12PSDW-C Diesel Fuel Injection Pump Test Bench, Common/Standard Type, Digital Screen, 12 cylinders
Power: 7.5kw, 11kw, 15kw, 18.5kw, 22kw etc.
Voltage: 380V/50HZ or 220V/50HZ, 3-phase

  • 12PSDW
  • FOTMA
  • 9031809090
Introduce:
12PSDW-C Diesel Fuel Injection Pump Test Bench, Common/Standard Type, Digital Screen, 12 cylinders.
Power: 7.5kw, 11kw, 15kw, 18.5kw, 22kw etc.
Voltage: 380V/50HZ or 220V/50HZ, 3-phase

Features:
1. Changing frequency changing rotation speed;
2. Small fall of rotation speed and high output torque;
3. High measurement precision, Ultra low noise;
4. Over voltage, Overload and short circuit protection;
5. Ten kinds of rotation speeds presetting;
6. Constant temperature controlled;
7. Rotation speed, count, advance angle and temperature are displayed in digits mode, and air pressure is displayed on the mechanical gauge;
8. Built-in Air resource;
9. Can be operated from both sides.

Functions:
1. Measurement of each cylinder's delivery at various rotation speeds
2. Checking each cylinder's injection starting position and delivery interval angle
3. Checking and adjust the mechanical speed governor.
4. Checking and adjusting the distributor pump.
5. Checking and adjusting behavior of supercharging and compensatory device.
6. Measurement of the reflux delivery of distributor pumps
7. Checking the electromagnetic valve of distributor pumps. (12V/24V)
8. Measurement of the distributor pump's body internal pressure.
9. Checking the sealing of fuel injection pump body
10. Install tube of auto-sucking oil supply can check on oil supply pump. (including VE pump.)
11. Measurement of Advance angle

Technical Parameters:
1. Adjustable rotation speed range: 0~4000 RPM
2. Test cylinders: 12.
3. Rotation speed presetting: 10 kinds.
4. DC. Supply: 12/24V
5. Feeding pump motor: 1.1kw
6. Series of graduate glass: 45cc, 150cc. The 260cc is optional
7. Volume of oil tank: 60L
8. Main shafts Center height: 125mm
9. Flywheel inertia's moment: 0.8kg.M2,
10. Stoke counting: 50-9999
11. Control temperature of fuel oil (℃): 40+2
12. Feed oil pressure: low pressure 0-0.4MPa, high-pressure 0-4Mpa.
      Internal pressure: 0-0.16MPa, 0-1.6MPa.
13. Rotation direction of Main shafts: Clockwise or Anticlockwise
14. Packing dimension: Approx. 4.5M3 CBM
15. Packing weight: Approx. 900kg
16. Output power: 5.5kw, 7.5kw, 11kw and 15 kw or on request
17. 3-phase power supply: 380v/50hz or on request.
18. Color available: Green, blue, red, yellow or on your request.

Test Bench Pictures:
12PSDW-C test bench

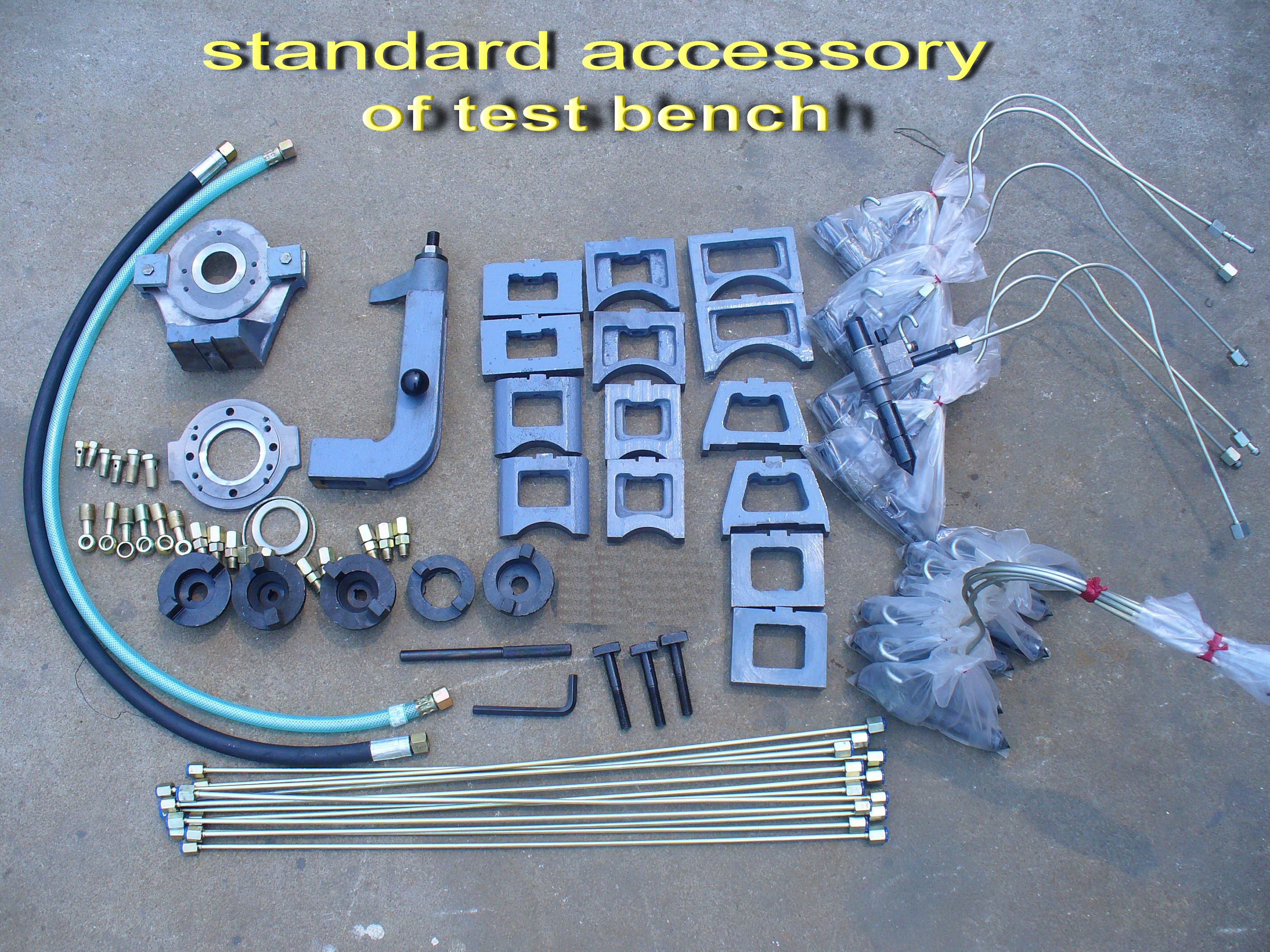

Test Bench Standard Accessories:
Standard accessory of test bench.jpg

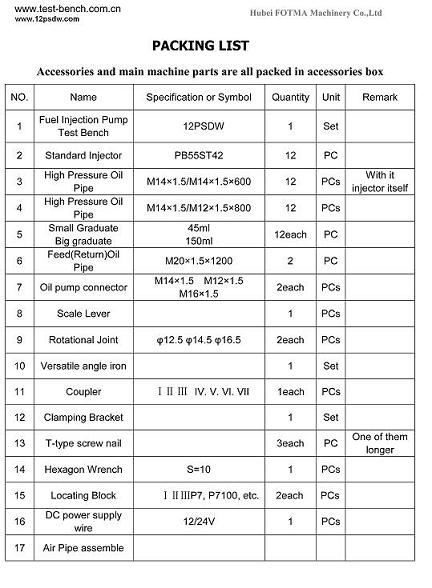

Test Bench Packing List

test bench packing list.jpg
