FM-4000S FM-5000S All-in-One, Multifunctional Test Bench

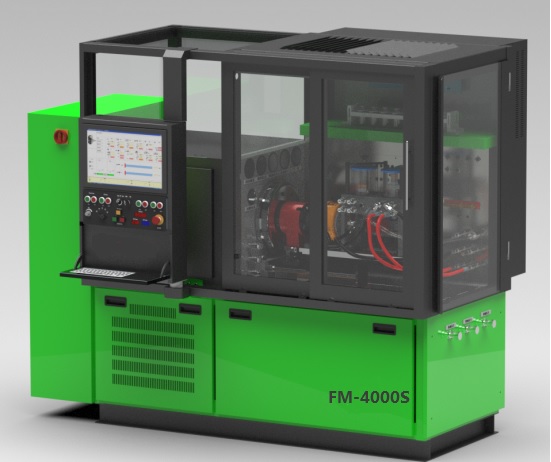

FM-4000S Multi-function Test Bench picture

Function:

1. Testing common rail injector

2. Testing common rail pump

3. Testing EUP, EUI

4. Testing HEUI

5. Testing HEUI driven pump

6. Max. rail pressure 2400bar

7. Drive motor 22kw

8. Injection driven and system voltage monitor

9. Contain filter function common rail pipe

10. Dual DRV configure

11. High pressure filter plugging reminder function

12. Waste tank overflow warning

13. Oil tank and diesel tank integrated A/C forced-cooling system

Feature:

1. Integrated motor cast base with fine concentricity and less vibration and noisy.

2. Fine metal work and outlook design with sliding doorseasy and safe operation.

3. Industrial control computer with touch screen,aviation button and strong mobile wheels.

4. High pressure rail with filter,twin DRV and sensors,filter block alarm.

5. Forced cooling system with integrated exchanger of cooling and evaporating in the bank.

6. Enough working space,upgrading modularity, bank overflow alarm.

7. A loop control of the temperatures of tanks,inlet and backflow by high-precision sensors.

8. A fine testing and screen display of the pressures of inlet,backflow and pump chamber by high-precision sensors.

9. An Integrated WIFI to provide remote control and upgrading, and to reduce the service waiting time.

10. Pressure self-adjustment in HEUI system with high precision, without errors by an optional manual operation.

11. With HEUI testing patent applicable for injectors of CAT C7/C9/C-9/3126B/3412E/ISUZU.

12. With mount patent for HEUI actuating pump, applicable for pumps of C7/C9/C-9/3126B without a gear dismount.

13. With patent of air-out switch valve and high-precision German flowmeter to ensure the same accuracy as BOSCH equipment to improve the testing efficiency.

14. With patent of hydro-circuit  and air-out control technology, no air-out steps in need under any working conditions. There are no differences under the repeated 10 times testing on the same injector especially.

15. With patent of injector fixture to ensure an universal use of all injectors with high service efficiency.

16. Automatic AHE testing without an injector dismounting.

17. Applicabe for ZME testing through programed software, by matching and setting-up the flow characteristics freely.

18. The electronic system has the same function of pulse control as ECU with an improved voltage circuit, to ensure an exact trigger of any OEM injectors with different resistances and inductances. A self-definition and programming of the voltage,current and timing for the lifting,absorbing and holding of the solenoid injectors.

19. A flexible setting-up  of the drive and back voltage for piezo injectors.

20. An IQA Coding for BOSCH injectors enable to re-set the injection and re-create IQA code  without an injector repairing,to improve and optimize the starting and acceleration of the engine.

21. An accurate testing of CR pump pressure and flow characteristic and a distinguishing of camshaft based on the sensor of CAT 320D pump.

22. An accurate testing of pressure and flow characteristic of HEUI actuator OF CAT pump, as well the internal control valve of CAT actuator.

23. CR pump testing (setting-up pressures of inlet, backflow):

1) .pump chamber pressure 2). fuel supply; 3) backflow 4) self-absorbing 5).metering unit performamce (current/ flow ratio) 6).pump static state;7).fuel supply under max rail pressure;8).fuel supply under max rotation;9).fuel supply under starting state.

24. Integrated cambox for EUI/EUP, solid cast with reliable life span, easily change the original OEM cams with diffirent lifts and  molded lines according to the real testing conditions. For Cummins PT Injector, no need to change the camshaft like usual equipment made in China, with the rotary screw and dial disc for spring pre-compress, the testing result is exactly in accordance with the Hartridge machine,which are applicable for all kinds of EUPs including NYC,WEITE,BOSCH,DELPHI,BENZ,LONGBENG, and EUIs including DELPHI,DELPHI E3,CUMMINS,BOSCH,CAT,CAT Mechanical,DETRIOT, VOLKSWAGEN,SIMENS,etc.
