In trying to keep up with emissions and fuel efficiency laws, the fuel system used in modern cars has changed a lot over the years. The 1990 Subaru Justy was the last car sold in the United States to have a carburetor; the following model year, the Justy had fuel injection. But fuel injection has been around since the 1950s, and electronic fuel injection was used widely on European cars starting around 1980. Now, all cars sold in the United States have fuel injection systems.
In this article, we'll learn how the fuel gets into the cylinder of the engine, and what terms like "multi-port fuel injection" and "throttle body fuel injection" mean.
The Fall of the Carburetor
For most of the existence of the internal combustion engine, the carburetor has been the device that supplied fuel to the engine. On many other machines, such as lawnmowers and chainsaws, it still is. But as the automobile evolved, the carburetor got more and more complicated trying to handle all of the operating requirements. For instance, to handle some of these tasks, carburetors had five different circuits:
Main circuit - Provides just enough fuel for fuel-efficient cruising
Idle circuit - Provides just enough fuel to keep the engine idlingAccelerator pump - Provides an extra burst of fuel when the accelerator pedal is first depressed, reducing hesitation before the engine speeds up
Power enrichment circuit - Provides extra fuel when the car is going up a hill or towing a trailer
Choke - Provides extra fuel when the engine is cold so that it will start
In order to meet stricter emissions requirements, catalytic converters were introduced. Very careful control of the air-to-fuel ratio was required for the catalytic converter to be effective. Oxygen sensors monitor the amount of oxygen in the exhaust, and the engine control unit (ECU) uses this information to adjust the air-to-fuel ratio in real-time. This is called closed loop control -- it was not feasible to achieve this control with carburetors. There was a brief period of electrically controlled carburetors before fuel injection systems took over, but these electrical carbs were even more complicated than the purely mechanical ones.
At first, carburetors were replaced with throttle body fuel injection systems (also known as single point or central fuel injection systems) that incorporated electrically controlled fuel-injector valves into the throttle body. These were almost a bolt-in replacement for the carburetor, so the automakers didn't have to make any drastic changes to their engine designs.
Gradually, as new engines were designed, throttle body fuel injection was replaced by multi-port fuel injection (also known as port, multi-point or sequential fuel injection). These systems have a fuel injector for each cylinder, usually located so that they spray right at the intake valve. These systems provide more accurate fuel metering and quicker response.
When You Step on the Gas

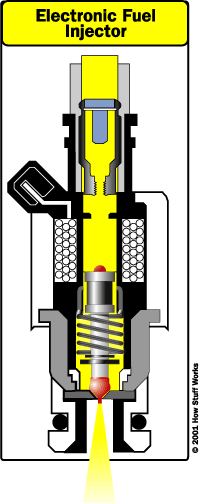

Inside a fuel injector

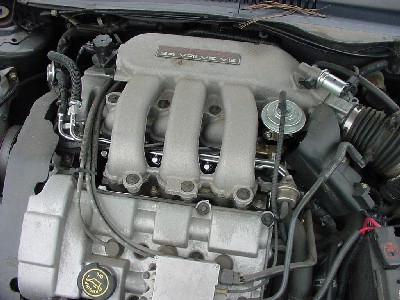

The gas pedal in your car is connected to the throttle valve -- this is the valve that regulates how much air enters the engine. So the gas pedal is really the air pedal. A partially open throttle valve
When you step on the gas pedal, the throttle valve opens up more, letting in more air. The engine control unit (ECU, the computer that controls all of the electronic components on your engine) "sees" the throttle valve open and increases the fuel rate in anticipation of more air entering the engine. It is important to increase the fuel rate as soon as the throttle valve opens; otherwise, when the gas pedal is first pressed, there may be a hesitation as some air reaches the cylinders without enough fuel in it.
Sensors monitor the mass of air entering the engine, as well as the amount of oxygen in the exhaust. The ECU uses this information to fine-tune the fuel delivery so that the air-to-fuel ratio is just right.
A fuel injector is nothing but an electronically controlled valve. It is supplied with pressurized fuel by the fuel pump in your car, and it is capable of opening and closing many times per second.

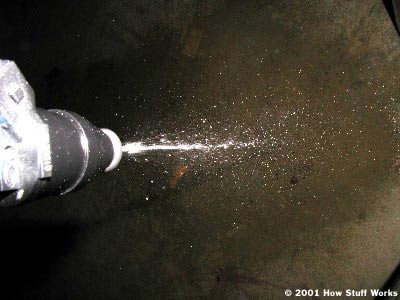

When the injector is energized, an electromagnet moves a plunger that opens the valve, allowing the pressurized fuel to squirt out through a tiny nozzle. The nozzle is designed to atomize the fuel -- to make as fine a mist as possible so that it can burn easily. A fuel injector firing

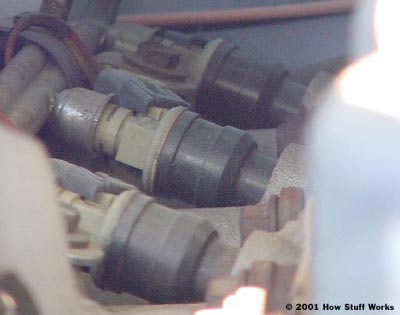

The amount of fuel supplied to the engine is determined by the amount of time the fuel injector stays open. This is called the pulse width, and it is controlled by the ECU. Fuel injectors mounted in the intake manifold of the engine
The injectors are mounted in the intake manifold so that they spray fuel directly at the intake valves. A pipe called the fuel rail supplies pressurized fuel to all of the injectors.
In this picture, you can see three of the injectors. The fuel rail is the pipe on the left.
In order to provide the right amount of fuel, the engine control unit is equipped with a whole lot of sensors. Let's take a look at some of them.
In order to provide the correct amount of fuel for every operating condition, the engine control unit (ECU) has to monitor a huge number of input sensors. Here are just a few:
Mass airflow sensor - Tells the ECU the mass of air entering the engine
Oxygen sensor(s) - Monitors the amount of oxygen in the exhaust so the ECU can determine how rich or lean the fuel mixture is and make adjustments accordingly
Throttle position sensor - Monitors the throttle valve position (which determines how much air goes into the engine) so the ECU can respond quickly to changes, increasing or decreasing the fuel rate as necessary
Coolant temperature sensor - Allows the ECU to determine when the engine has reached its proper operating temperature
Voltage sensor - Monitors the system voltage in the car so the ECU can raise the idle speed if voltage is dropping (which would indicate a high electrical load)
Manifold absolute pressure sensor - Monitors the pressure of the air in the intake manifold
The amount of air being drawn into the engine is a good indication of how much power it is producing; and the more air that goes into the engine, the lower the manifold pressure, so this reading is used to gauge how much power is being produced.
Engine speed sensor - Monitors engine speed, which is one of the factors used to calculate the pulse width
There are two main types of control for multi-port systems: The fuel injectors can all open at the same time, or each one can open just before the intake valve for its cylinder opens (this is called sequential multi-port fuel injection).
The advantage of sequential fuel injection is that if the driver makes a sudden change, the system can respond more quickly because from the time the change is made, it only has to wait only until the next intake valve opens, instead of for the next complete revolution of the engine.
Engine Controls and Performance Chips
The algorithms that control the engine are quite complicated. The software has to allow the car to satisfy emissions requirements for 100,000 miles, meet EPA fuel economy requirements and protect engines against abuse. And there are dozens of other requirements to meet as well.
The engine control unit uses a formula and a large number of lookup tables to determine the pulse width for given operating conditions. The equation will be a series of many factors multiplied by each other. Many of these factors will come from lookup tables. We'll go through a simplified calculation of the fuel injector pulse width. In this example, our equation will only have three factors, whereas a real control system might have a hundred or more.
Pulse width = (Base pulse width) x (Factor A) x (Factor B)
In order to calculate the pulse width, the ECU first looks up the base pulse width in a lookup table. Base pulse width is a function of engine speed (RPM) and load (which can be calculated from
manifold absolute pressure). Let's say the engine speed is 2,000 RPM and load is 4. We find the number at the intersection of 2,000 and 4, which is 8 milliseconds.
| RPM || Load |
| 1 || 2 || 3 || 4 || 5 |
| 1000 || 1 || 2 || 3 || 4 || 5 |
| 2000 || 2 || 4 || 6 || 8 || 10 |
| 3000 || 3 || 6 || 9 || 12 || 15 |
| 4000 || 4 || 8 || 12 || 16 || 20 |
In the next examples, A and B are parameters that come from sensors. Let's say that A is coolant temperature and B is oxygen level. If coolant temperature equals 100 and oxygen level equals 3, the lookup tables tell us that Factor A = 0.8 and Factor B = 1.0.
| A || Factor A || B || Factor B |
| 0 || 1.2 || 0 || 1 |
| 25 || 1.1 || 1 || 1 |
| 50 || 1 || 2 || 1 |
| 75 || 0.9 || 3 || 1 |
| 100 || 0.8 || 4 || 0.75 |
So, since we know that base pulse width is a function of load and RPM, and that pulse width = (base pulse width) x (factor A) x (factor B), the overall pulse width in our example equals:
8 x 0.8 x 1.0 = 6.4 milliseconds
From this example, you can see how the control system makes adjustments. With parameter B as the level of oxygen in the exhaust, the lookup table for B is the point at which there is (according to engine designers) too much oxygen in the exhaust; and accordingly, the ECU cuts back on the fuel.
Real control systems may have more than 100 parameters, each with its own lookup table. Some of the parameters even change over time in order to compensate for changes in the performance of engine components like the catalytic converter. And depending on the engine speed, the ECU may have to do these calculations over a hundred times per second.
This leads us to our discussion of performance chips. Now that we understand a little bit about how the control algorithms in the ECU work, we can understand what performance-chip makers do to get more power out of the engine.
Performance chips are made by aftermarket companies, and are used to boost engine power. There is a chip in the ECU that holds all of the lookup tables; the performance chip replaces this chip. The tables in the performance chip will contain values that result in higher fuel rates during certain driving conditions. For instance, they may supply more fuel at full throttle at every engine speed. They may also change the spark timing (there are lookup tables for that, too). Since the performance-chip makers are not as concerned with issues like reliability, mileage and emissions controls as the carmakers are, they use more aggressive settings in the fuel maps of their performance chips.
