New Design Appearance and Better Funtion Test Stand, for testing PT Cummins Pump

Views:1     Author:Site Editor     Publish Time: 2021-04-26      Origin:Site

New Design Appearance and Better Funtion Test Stand, for testing PT Cummins Pump

New Design Appearance and Better Funtion Test Stand, for testing PT Cummins Pump


Instruction:

PT212 PT fuel pump Test bench is special equipment used to provide test and calibration for CUMMINS PT fuel pump. It has abundant functions, high measure precision, and fast sampling.

For instance: Fit for: PT(G), PT(G)VS, PT(G)MVS, PTGSVS, PTGAFC, PTGAFC-VS, PTR, PTH-VS fuel pumps etc and damping ASA valve.



Functions

1.Gear pump pressure and vacuum test

2. Idle speed test

3. Weight assistant pressure test

4. Pressure and flow test in every check point

5.  AFC test

6. Oil stopping test

7. Route test of throttle

8.  Oil return test of throttle

9.  ASA valve test

10. EFC test

11.ON-OFF valve test



Technical Characteristic:

Motor output power

Speed range

Oil tank volume

Fuel No.

Oil temperature

Fuel testing pressure

3kw

0~3000rpm

50L

0# Diesel or Standard fuel

38±2℃

≤2.5 Mpa

300Lb/in2



Air testing pressure

Gear pump testing pressure

Fuel testing standard flow

Fuel testing leakage flow

Dimension

Net weight

≤2.5 Mpa

250psi

≤5 Mpa

600Lb/in2

75~800Lb/h, 800~2200Lb/h

20~500ML/min

680*935*1730mm

300kg

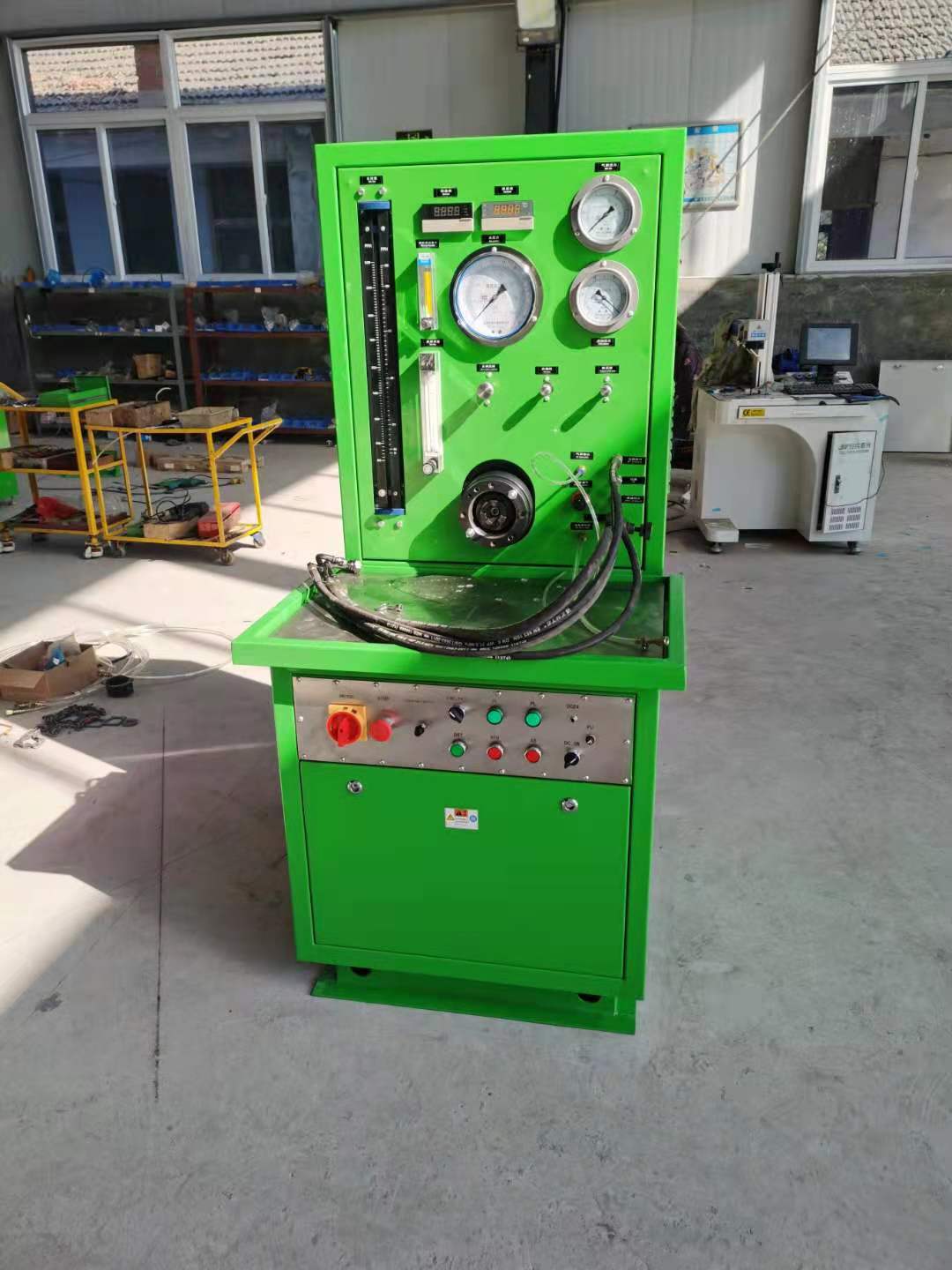

 PT pump test bench
