12PSDW-L Diesel Fuel Injection Pump Test Bench, Touch Screen Type

12PSDW-L Diesel Fuel Injection Pump Test Bench, Touch Screen Type, 12 cylinders, 17''LCD Touch Screen, Controlled and measured by Computer in real time.
Power: 7.5kw, 11kw, 15kw, 18.5kw, 22kw etc.
Voltage: Voltage: 380V/50HZ or 220V/50HZ, 3-phase

Quantity:
  • 12PSDW-L
  • FOTMA
  • 9031809090
Introduce:
12PSDW-L Diesel Fuel Injection Pump Test Bench, Touch Screen Type, Controlled and measured by Computer in real time.
Power: 7.5kw, 11kw, 15kw, 18.5kw, 22kw etc.
Voltage: Voltage: 380V/50HZ or 220V/50HZ, 3-phase

12PSDW-L color 17'' LCD touch screen display diesel fuel injection test bench is our newly research hi-technology It controls by industrial computer. It included two kinds of operation systems: Color liquid crystal display screen (LCD Monitor) and two groups of four digit nixie tube display (digital display ).

It included three kinds of controlling ways: LCD touch screen control, panel keyboard control and remote control. The panel keyboard of on the right of the computer provide all the control functions, touch screen and remote screen integrated the shortcut of commonly operational controlling way. rotary speed , temperature, pressure, travel of stroke advance angle and the  technical data of fuel injection pumps display on screen and can print.

This series test bench adopt high quality frequency conversing device, and it has characteristic with hi-reliability, ultra-low-noise, energy save, high output torque, perfect auto-protecting function and operate easy. it is the easiest, the quickest, the most reliable in our business.

Main Function:
1. Measurement of each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including12. Checking the travel of stroke (on request)
13. 17'' LCD touch screen, two operating systems

Technical Characteristic

Cylinders
Output power
RPM

RPM-Preset

Temp. Control

Positive Pressure

Negative Pressure
12
7.5kw
11 kw
15 kw
18.5kw
22kw
0-4000
 Air supply
12/24 DC power supply
 Internal pressure of VE pump
 Oil return of VE pump
 Rack Stroke
 Advance Angel
 Capability with pump type
(On request)
(On request)
All in- line and rotary pump


Test Bench Picturs:

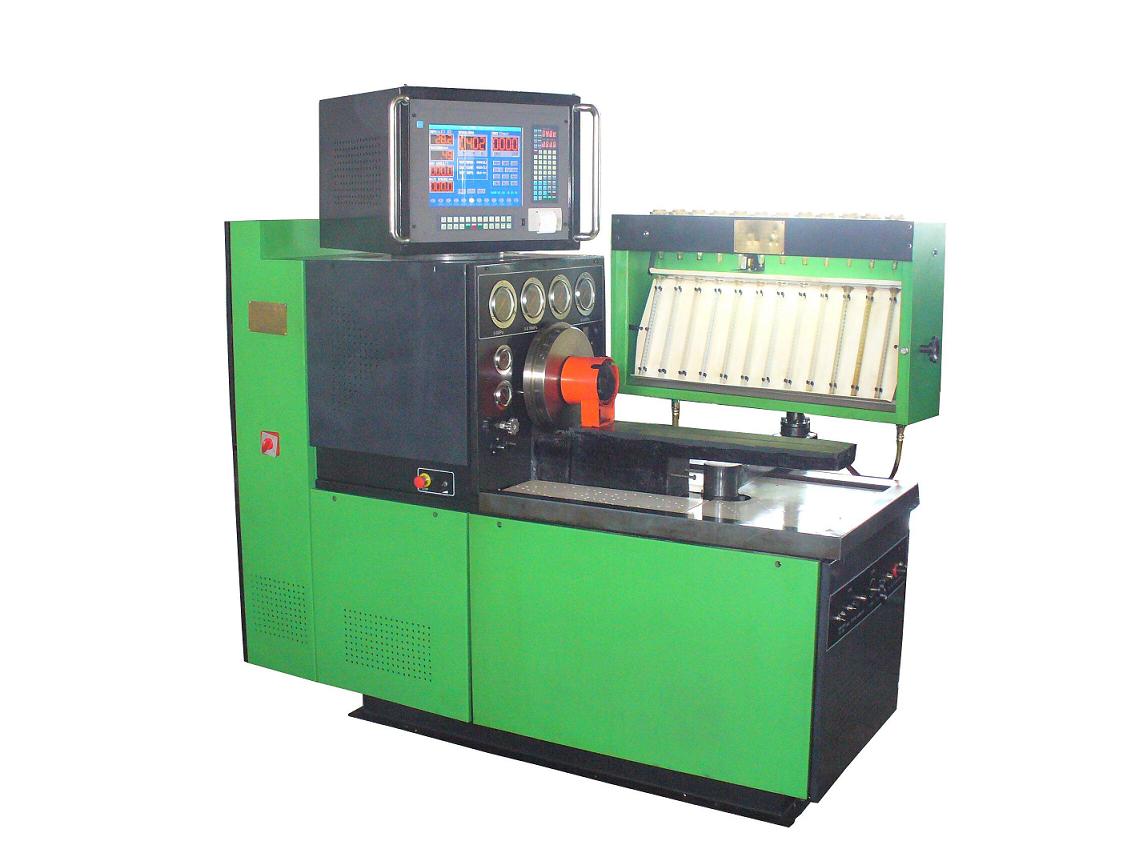

12PSDW-L test bench

Test Bench Standard Accessories:

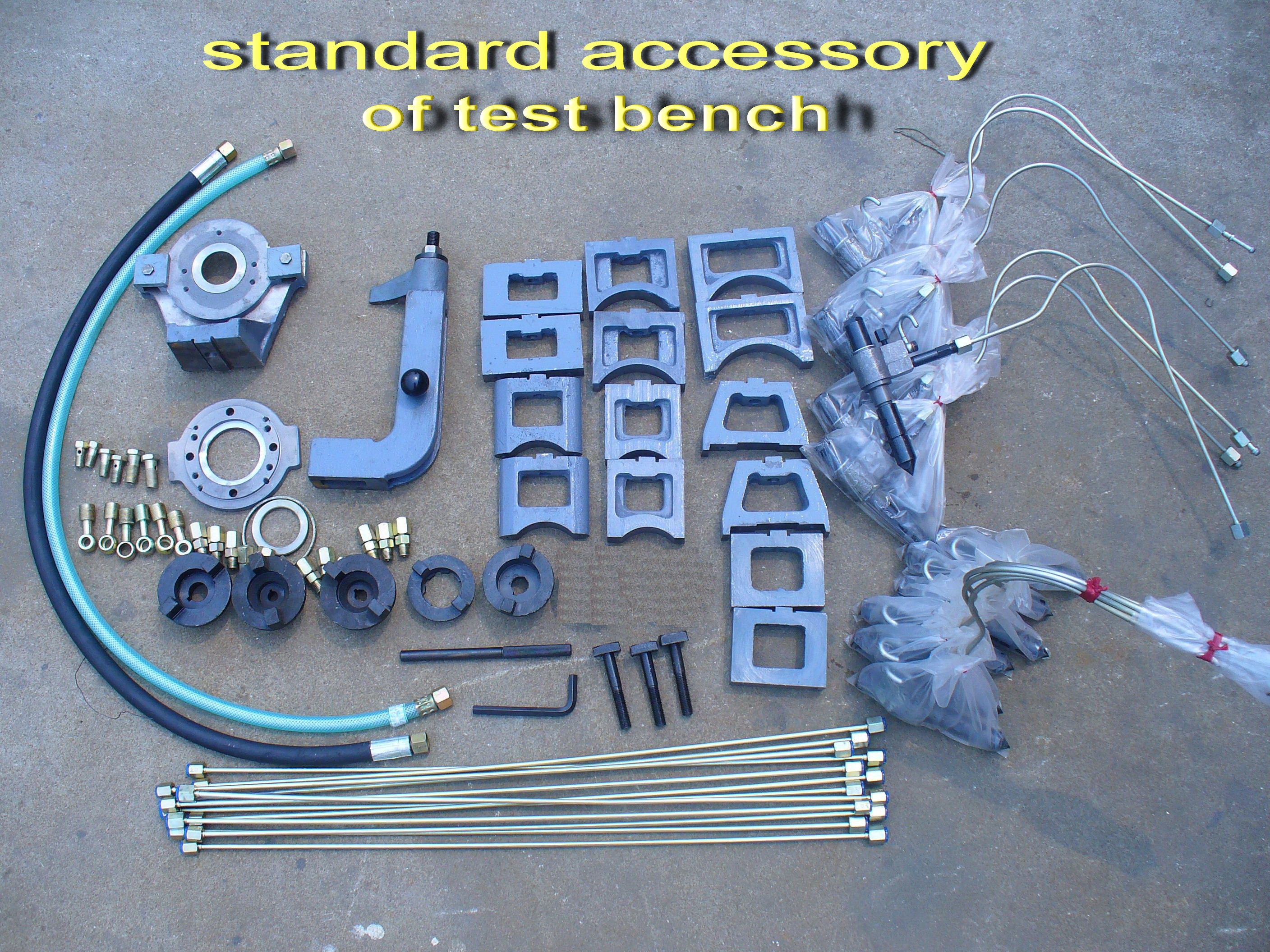

Standard accessory of test bench.jpg

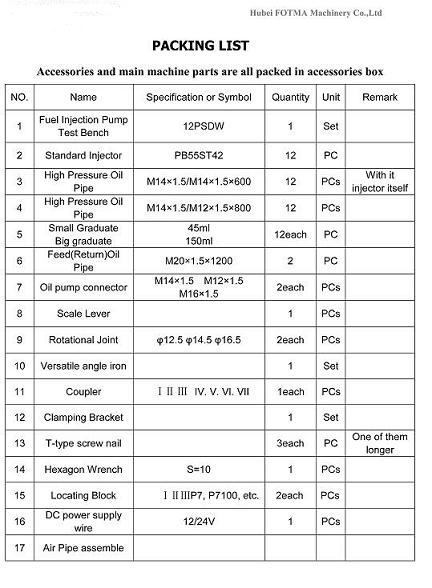

test bench packing list.jpg
