12PSDW-S Diesel Fuel Injection Pump Test Bench, Computer Oil Delivery Display

12PSDW-S Diesel Fuel Injection Pump Test Bench, Computer Oil Delivery Display, 12 cylinders, Electronic Fuel Delivery Measuring System, Controlled and measured by Computer in real time.
Power: 7.5kw, 11kw, 15kw, 18.5kw, 22kw etc.
Voltage: 380V/50HZ or 220V/50HZ, 3-phase
Quantity:
  • 12PSDW-S

  • 12PSDW

  • 9031809090

Introduce:
12PSDW-S Diesel Fuel Injection Pump Test Bench, Computer Oil Delivery Display, 12 cylinders, Electronic Fuel Delivery Measuring System, Controlled and measured by Computer in real time.
Power: 7.5kw, 11kw, 15kw, 18.5kw, 22kw etc.
Voltage: 380V/50HZ or 220V/50HZ, 3-phase


12PSDW-S Electronic Fuel Delivery Measuring System Test Bench---continuous fuel delivery analysis computerized measuring system for conventional and new diesel injection systems. The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing. It guarantees a high level of reproductively of the measured values.

Main Function:
1. Measurement of each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump.
7. Testing of the electromagnetic valve of distributor pump. (12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)
12. Checking the travel of stroke (on request)
13.oil lubricate (on request)
14. Foced cooler (on request)

Technical characteristic

Adjustable cylinders numbers
Out power(Kw)
RPM
Rpm pre-set
Temperature control system
Positive pressure system
Positive pressure system


12
7.5  11
15   18.5
0-4000
√
√
√
√


Air supply
DC power supply
Internal pressure of VE pump
Oil return of VE pump
Travel of tooth bar
Advanced angle
Capability with pump type
√
√
√
√
(On request)
√(On request)
All in- line and rotary pump

Test Bench Pictures

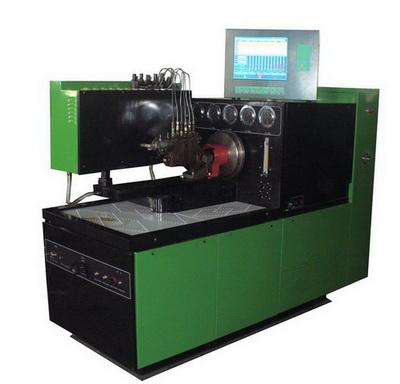

12PSDW-S Test Bench

Electronic Fuel Delivery Measuring System, Oil Delivery Display in Computer

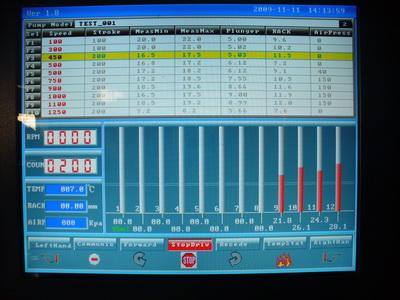

12PSDW-S Test Bench Display

Test Bench Standard Accessories Pictures
Standard accessory of test bench.jpg

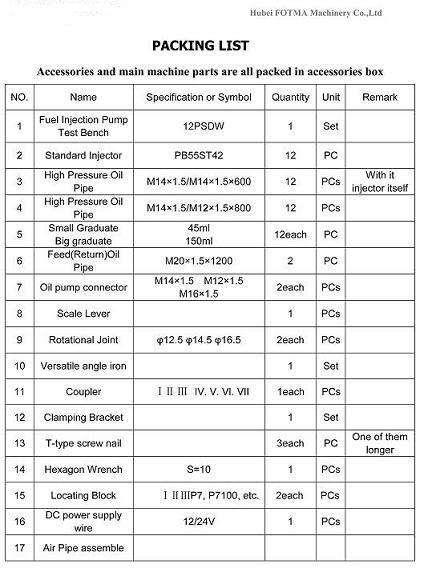

test bench packing list.jpg
