CAT4400L HEUI Injector Test Bench for Testing CAT c7,c9,c-9,3126b

Computer Control, 2 Sets of Oil System
To test up to four HEUI injectors, which are equipped on the following engines:
· 3408/3412 Ford 6.0 Power Stroke Engines (Standard)
· G2.9 CAT3116 (Optional)
· 3412/3408 ISUZU (Optional)
· Caterpillar C7, C9, C-9, 3126B (Standard)
-Adapting Kits for Testing One CAT C7/C9 HEUI Injector (Standard)
-Adapting Kits for Testing One CAT 3408 HEUI Injector (Optional)
Quantity:
  • HUS-4000
  • FOTMA
  • 9031900090
CAT4400L HEUI Injector Test Bench for Testing CAT c7, c9, c-9, 3126B

HUS-4000 HEUI Injector System Test Bench, 5.5KW, with c7,c9,c-9,3126b Standard Adaptors, 3-phase 380v/50hz or 3-phase 220V/60hz
Voltage Optional: 220V/60HZ, single phase

Application:
The HEUI test bench is designed to test up to four HEUI injectors, which are equipped on the following engines:
·   3408/3412 Ford 6.0 Power Stroke Engines (Standard)
·   G2.9  CAT3116 (Optional)
·   3412/3408 ISUZU (Optional)
·   Caterpillar C7, C9, C-9, 3126B (Standard)
-Adapting Kits for Testing One CAT C7/C9 HEUI Injector  (Standard)
-Adapting Kits for Testing One CAT 3408 HEUI Injector (Optional)

Function:
1. Can test all HEUI injectors
2. Lowest limit alarm of the oil level
3. Configure multiple precision filters
4. Testing oil automatic heating &cooling control
5. Real-time display fuel injection &return volume curve

Feature:
1. Computer system with data inside
2. With 2 sets of oiI system, diesel fuel oi I and engine oil.
3. With flow sensor ,test result i s shown on computer.

Technical Parameters:

Model: CAT4400L
Power 5.5kw
Speed Control Mode Frequency Converter
Cooling System Fan
High Pressure Range 0-600Bar
Low Pressure Range 0-6bar
Flower Sensor 2pcs
Fuel Temperature 40+2°C
Size 1460mmx920mmxl560mm
Net Weight 550KG

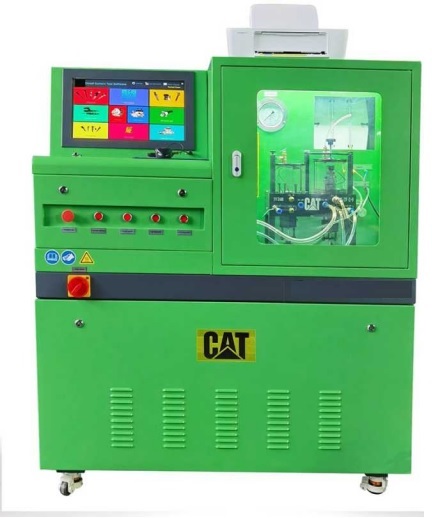

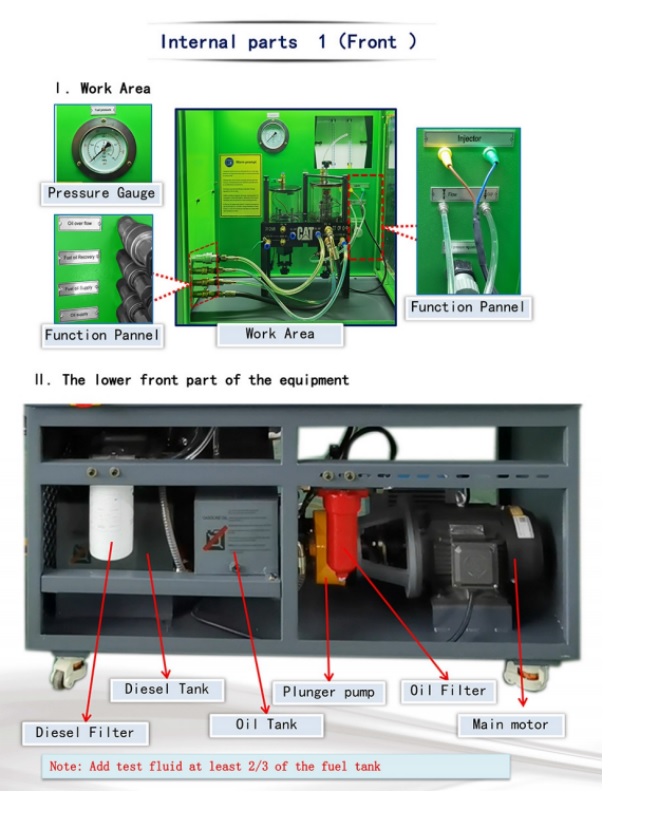

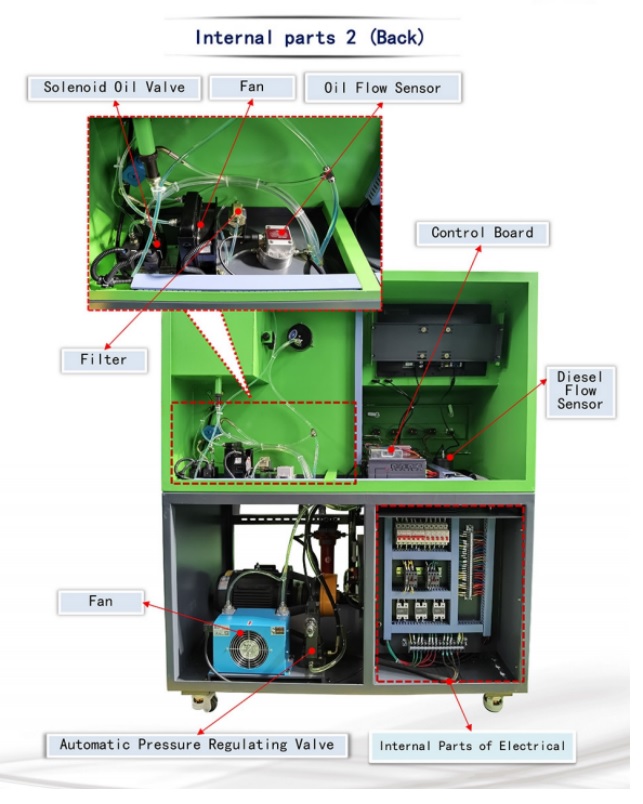

CAT4400L HEUI test bench, Special for CAT HEUI injectors, Pictures

2
1
2
微信图片_20210409150117

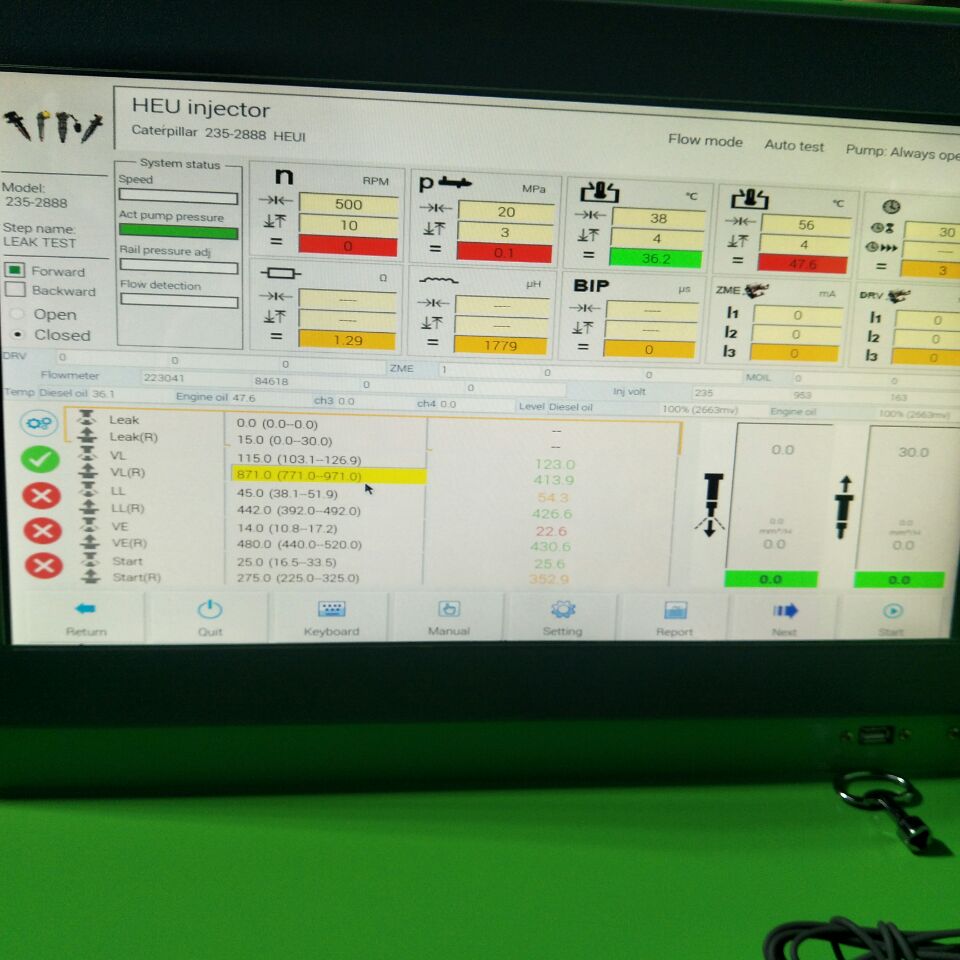

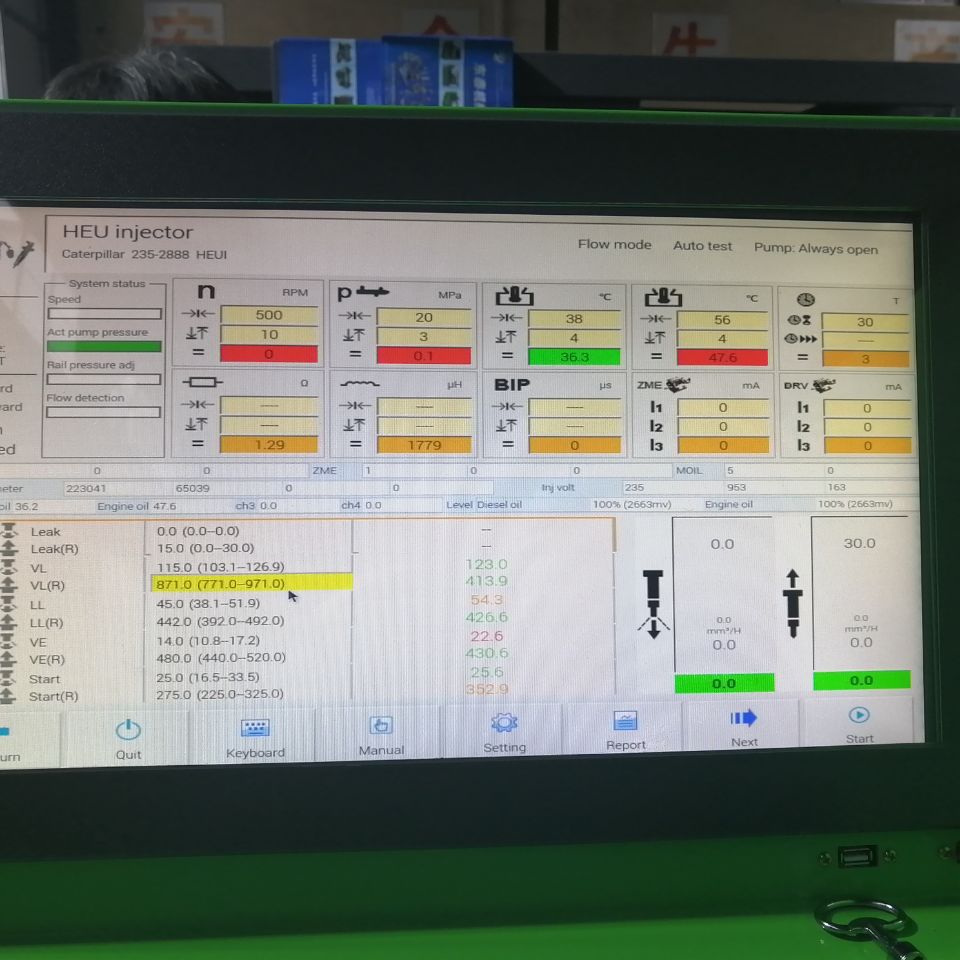

Operation System, for testing CAT HEUI 235-2888:
微信图片_20210409150037
 微信图片_20210409150105

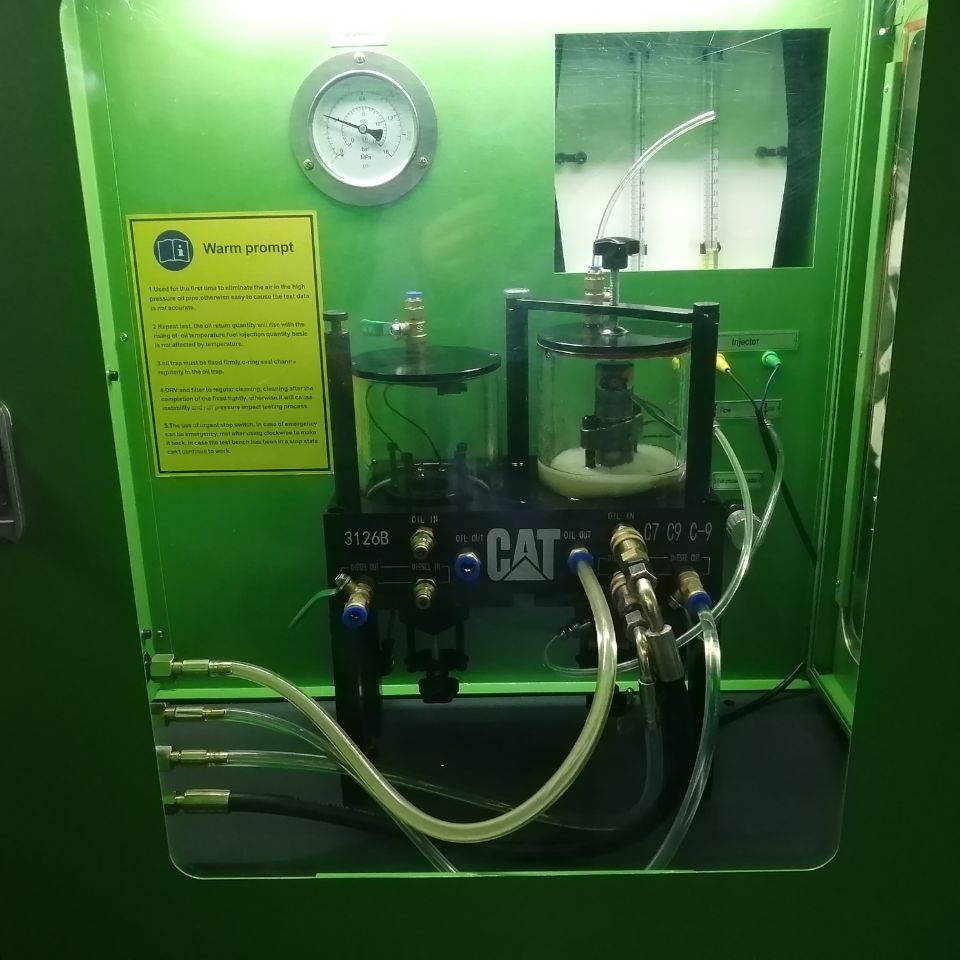

Standard Adaptors, for testing CAT C7 C9 HEUI injectors
微信图片_20210409155706
