HUI-100 HEUI Test Bench (Added-on HEUI Tester)

The HEUI test bench is designed to test up to four HEUI injectors, which are equipped on the following engines:
·   Navistar T444E, as Ford 7.3L Power Stroke Engines
·   Navistar DT466E
·   Navistar I530E
·   Caterpillar 3126B
-Adapting Kits for Testing One Ford 6.0L Power Stroke Engine HEUI Injectors
-Adapting Kits for Testing One CAT C7/C9 HEUI Injector
-Adapting Kits for Testing One CAT 3408 HEUI Injector
-Add-on type can test 1pcs injector at the same time
Quantity:
  • HUI-100

  • FOTMA

If you have traditional test bench, you can choose our added-on type HEUI Tester, its functions is the same as HEUI system test bench, but the price will be cheaper.

Application:
The HEUI test bench is designed to test up to four HEUI injectors, which are equipped on the following engines:
·   Navistar T444E, as Ford 7.3L Power Stroke Engines
·   Navistar DT466E
·   Navistar I530E
·   Caterpillar 3126B
-Adapting Kits for Testing One Ford 6.0L Power Stroke Engine HEUI Injectors
-Adapting Kits for Testing One CAT C7/C9 HEUI Injector
-Adapting Kits for Testing One CAT 3408 HEUI Injector
-Add-on type can test 1pcs injector at the same time

HEUI INJECTOR.jpg
HEUI-A injectors
■ CAT 3126B, Ford PowerStroke 7.3L
■ CAT 3408
● CAT HEUI-B injectors
■ CAT C7
■ CAT C9
● Ford PowerStroke 6.0L injector, (4-pin connector)
Features
● Injector testing device
■ Modular design,easy to mount the adapter for various type of injectors
■ Internal hydraulic actuation oil rail and injection oil rail
■ Pressure sensor on the device
● Single type of test oil for both hydraulic actuation and fuel injection
● Using a traditional Diesel pump test bench to drive a Bosch CP3 or CP2.2 pump as hydraulic actuation oil source

● Controller
■ Common rail pump control
◆ Adjusting PWM signal of the pump inlet flow regulator to control hydraulic actuation pressure
◆ Define polarity of the pump
◆ Pressure control modes
♦ Manual
♦ Automatic
■ Injector control
◆ Injection frequency, 10 – 1200 injection/min
◆ Injection duration,0 – 6 msec
■ Single key to switch injection start or stop
◆To ensure a safety operation, when injection is switched OFF, the pump load will be cut to zero immediately, while let injector working continuously until hydraulic actuation pressure dropped below 10bar, then shut down injector signal
■ Over pressure protection for hydraulic actuation flow
■ Friendly, easy to use 6-key mini-pad and display screen
● Special tools for repairing all kinds of HEUI injectors

Added-on HEUI Tester, Standard Accessories

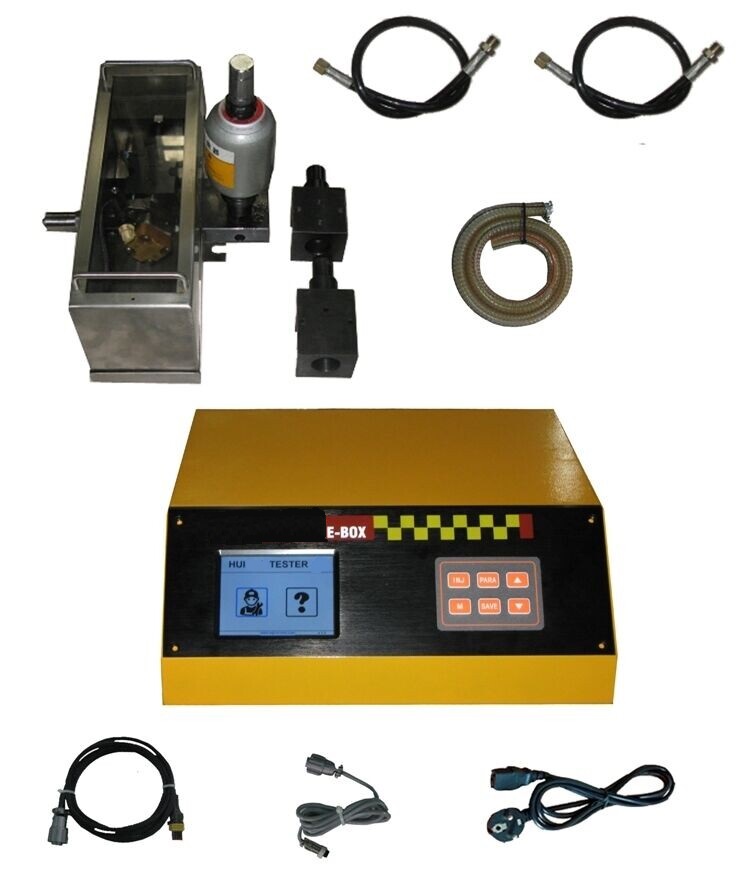

Add-on HEUI.jpg
