Diesel Fuel Injection Pump Test Bench

Share to:

CAT4400L HEUI Injector Test Bench, Testing FORD 6.0 injector

Computer Control, 2 Sets of Oil System
To test up to four HEUI injectors, which are equipped on the following engines:
· 3408/3412 Ford 6.0 Power Stroke Engines (Standard)
· G2.9 CAT3116 (Optional)
· 3412/3408 ISUZU (Optional)
· Caterpillar C7, C9, C-9, 3126B (Standard)

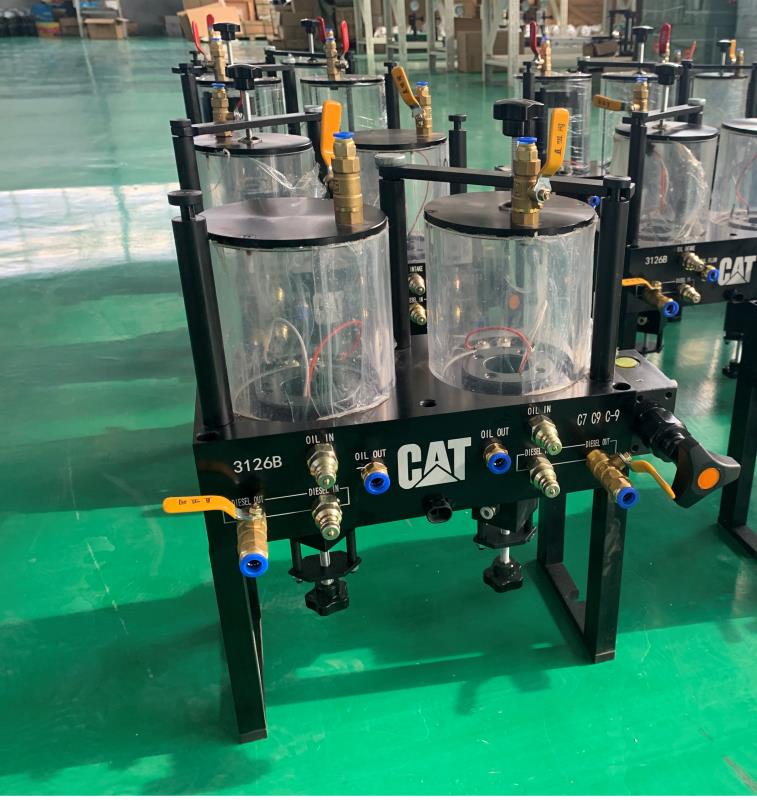

-Adapting Kits for Testing One CAT C7/C9 HEUI Injector (Standard)
-Adapting Kits for Testing One CAT 3408 HEUI Injector (Optional)

Quantity:



Inquire Add to Basket

Model:
CAT4400L
Brand:
FOTMA
Code:
9031900090

Product Description

CAT4400L HEUI Injector Test Bench for Testing CAT c7, c9, c-9, 3126B, Testing FORD 6.0 injector

_{HUS-4000 HEUI Injector System Test Bench, 5.5KW, with c7,c9,c-9,3126b Standard Adaptors, 3-phase 380v/50hz or 3-phase 220V/60hz}
_{Voltage Optional: 220V/60HZ, single phase}

Application:

The HEUI test bench is designed to test up to four HEUI injectors, which are equipped on the following engines:

· 3408/3412 Ford 6.0 Power Stroke Engines (Standard)

· G2.9 CAT3116 (Optional)

· 3412/3408 ISUZU (Optional)

· Caterpillar C7, C9, C-9, 3126B (Standard)

-Adapting Kits for Testing One CAT C7/C9 HEUI Injector (Standard)

-Adapting Kits for Testing One CAT 3408 HEUI Injector (Optional)

Function:
1. Can test all HEUI injectors
2. Lowest limit alarm of the oil level
3. Configure multiple precision filters
4. Testing oil automatic heating &cooling control
5. Real-time display fuel injection &return volume curve

Feature:
1. Computer system with data inside
2. With 2 sets of oiI system, diesel fuel oi I and engine oil.
3. With flow sensor ,test result i s shown on computer.

Technical Parameters:

Model: CAT4400L
Power	5.5kw
Speed Control Mode	Frequency Converter
Cooling System	Fan
High Pressure Range	0-600Bar
Low Pressure Range	0-6bar
Flower Sensor	2pcs
Fuel Temperature	40+2°C
Size	1460mmx920mmxl560mm
Net Weight	550KG
