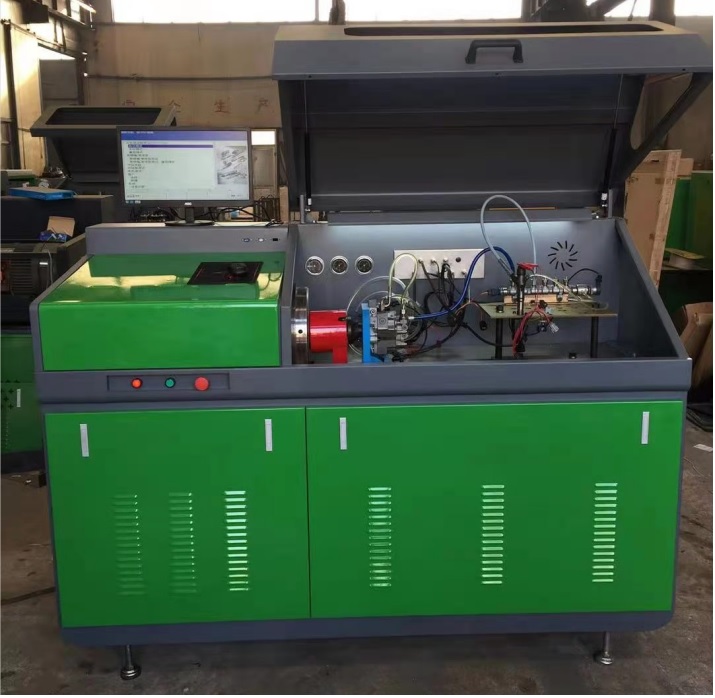

CRS708 Common Rail System Test Bench, HEUI, EUP/EUI

CRS708 common rail injector pump test bench, contain HEUI EUI EUP testing function
Testing For BOSCH DENSO DELPHI SIEMENS PIEZO all common rail injector test,for all common rail pump test,test EUI EUP/ HEUI injector, Bosch iqa coding function,with remote assistant software.

Quantity:



Inquire Add to Basket

Model:
CRS-708
Brand:
FOTMA
Code:
9031809090

Description

CRS708 common rail injector pump test bench, contain HEUI EUI/EUP Testing Funtion.

For BOSCH DENSO DELPHI SIEMENS PIEZO all common rail injector test,for all common rail pump test,test EUI EUP/ HEUI injector, Bosch iqa coding function,with remote assistant software.

Instruction:
1.Industrial computer control ,WINDOWS OS ,19inch LCD screen display
2.Equipped with original imported high - precision flow sensor and automatic turning over measuring cup to do the testing, these two systems can be standby equipment for each other, also ensure the accuracy and reliability of testing.
3. Industrial PC real-time control and display, WINDOWS OS.
4. Oil quantity sensor test oil quantity, 19 inch LCD screen display
5. Adopted original BOSCH common rail pump to provide 0~1600 bar rail pressure.
6. Rail pressure can be tested in real time, closed-loop control, Stable pressure, overvoltage protection
7. Adjustable pulse width and frequency of injector’s driving signal
8. Injection times can be set free
9. Preset about 500 kinds of injector data, easy to search and compare
10. Short circuit protection
11. Adopted super frequency converter to control rotation speed and insure the testing accuracy
12. Wide operation space, protective plexiglass cover to make sure your safe

Functions:
1. crs708 common rail test bench, This system support lots of injector brand, such as BOSCH, DENSO, DELPHI, SIEMENS and so on
2. Check the sealing of CRI (common rail injector)
3. Test oil quantity of CRI during pre-infection period
4. Test oil quantity of CRI under full load
5. Test oil quantity of CRI under idle speed
6. Test oil quantity of CRI under correction working condition
7. Test oil-returning quantity of CRI
8. Check the uniformity of CRI
9. Can test all kinds of CRI pumps
10. Provide open database, you can upgrade, modify the data.
11. Testing finish , report formed, you can save or print it.
Technical parameters:

CRS708 common rail test bench Technical Parameter
Voltage	380V or 220V, 3-phase
Power	11KW 15KW 18.5KW
Driving coupling	ISO4008/10115 mm length 116mm
Test oil tank capacity	32Lt
Certification	CE/ISO9001
Operating conditions	DTC Speed range 0-3500rpm
Feeding pump	Power:0.75KW Flow:6.3 L/min
Heater	2KW
Measurement sensor	Flow gauge high pressure pump 1-600 ml/min Rail high pressure gauge:0-1600bar
Temperature range	Measuring delta T 0-100 °C Measuring sensor Pt100
Test oil type	DIN ISO 4113
Size	17577144 cm
Weight with package	800KG
Material	steel

Common Rail Pump Testing, Oil Flow Sensor, 1pcs
测泵的流量计，方形

Common Rail Injector Testing, Oil Flow Sensor, 1pcs standard. Optional can choose 2pcs instead, it can let injector testing much smoothly and performance much better!
测喷油器的流量计，圆形

Optional EUP/EUI cambox testing function:
Standard Cambox EUP EUI testing

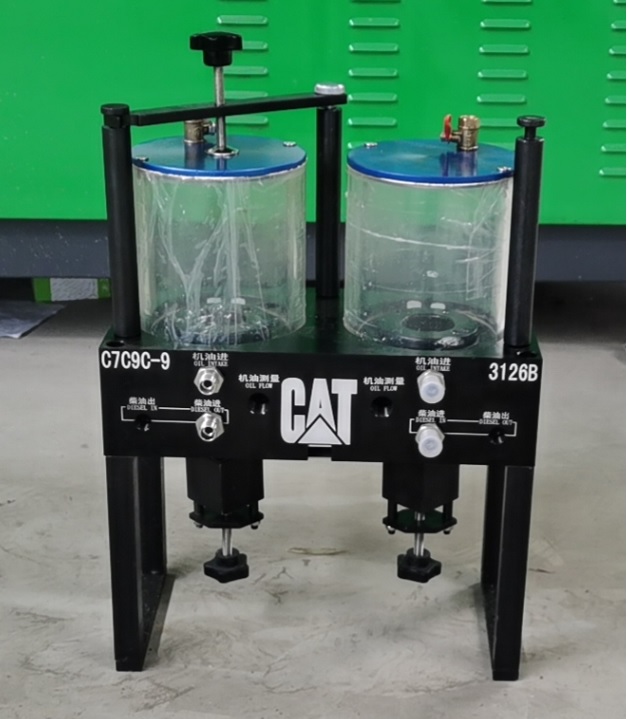

Optional HEUI testing function:
