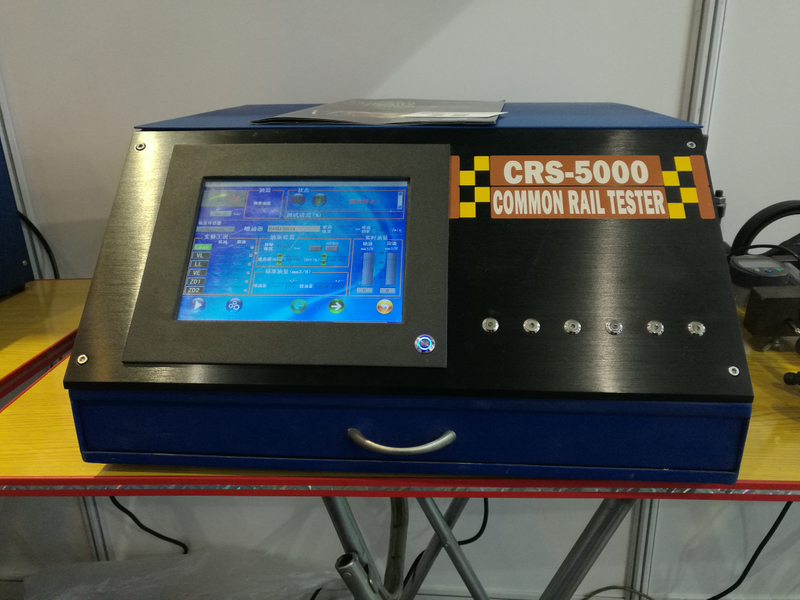

CRS-5000 Common Rail Injector Pumps System Tester for BOSCH, Denso, Delphi, Siemens

CRS-5000 common rail system tester, for Solenoid common rail injectors (Bosch, Delphi, Denso, Siemens injectors), common rail pumps (Bosch CP1/CP2/CP3, Delphi CRSP, Denso HP3/HP4, Siemens DCP pumps), also can drive 3DRVs.

Quantity:
  • CRS-5000
  • FOTMA
  • 9031809090
CRS-5000 common rail system tester, for Solenoid common rail injectors (Bosch, Delphi, Denso, Siemens piezo injectors), common rail pumps (Bosch CP1/CP2/CP3, Delphi CRSP, Denso HP3/HP4, Siemens DCP pumps), also can drive 3DRVs

CRS-5000 is a cost-effective, modular designed equipment to test all kinds of diesel common rail fuel injection systems.

CRS-5000 Applications

Features:
CR Injector Drivers:
● 6 solenoid injectors
 ■ High voltage for Bosch, Denso injectors
 ■ Low voltage for Delphi injectors
● 6 piezoelectric injectors, made by Siemens and Bosch (optional module)
● Short circuit protection for both solenoid and piezo injector drivers

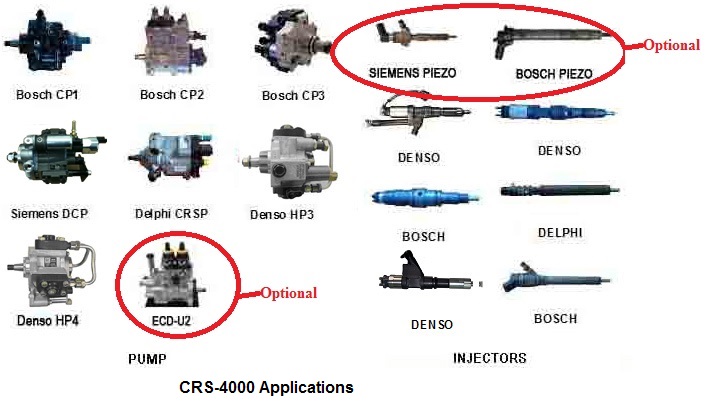

CRS-4000 Common Rail System Tester Applications


CR Pump Drivers:
● Multiple independent PWM (Pulse Width Modulation) output channels to drive pump solenoids
■ Testing pumps with single regulation valve
● Bosch CP1/CP2/CP3
● Delphi CRSP
● Denso HP3/HP4
■ Testing Siemens DCP pump with two regulation valves
■ Drive 3 DRVs for testing pump capability
● 2 special output channels synchronous with pump speed to drive the two control solenoids on Denso HP0 (ECD-U2) pump (optional module)

Fuel Rail Pressure Sensor
● Pre-calibrated data for Bosch, Delphi, Denso pressure sensors
● Automatic (close-loop) rail pressure control
● Software based over-pressure protection

User Interface
● Small key pad
● Large LCD screen

Others
● One year manufacture warranty
● Injector and pump test procedure and database, off-line
● DRV adaptor for pump flow rate test (Optional)
● Rich accessories

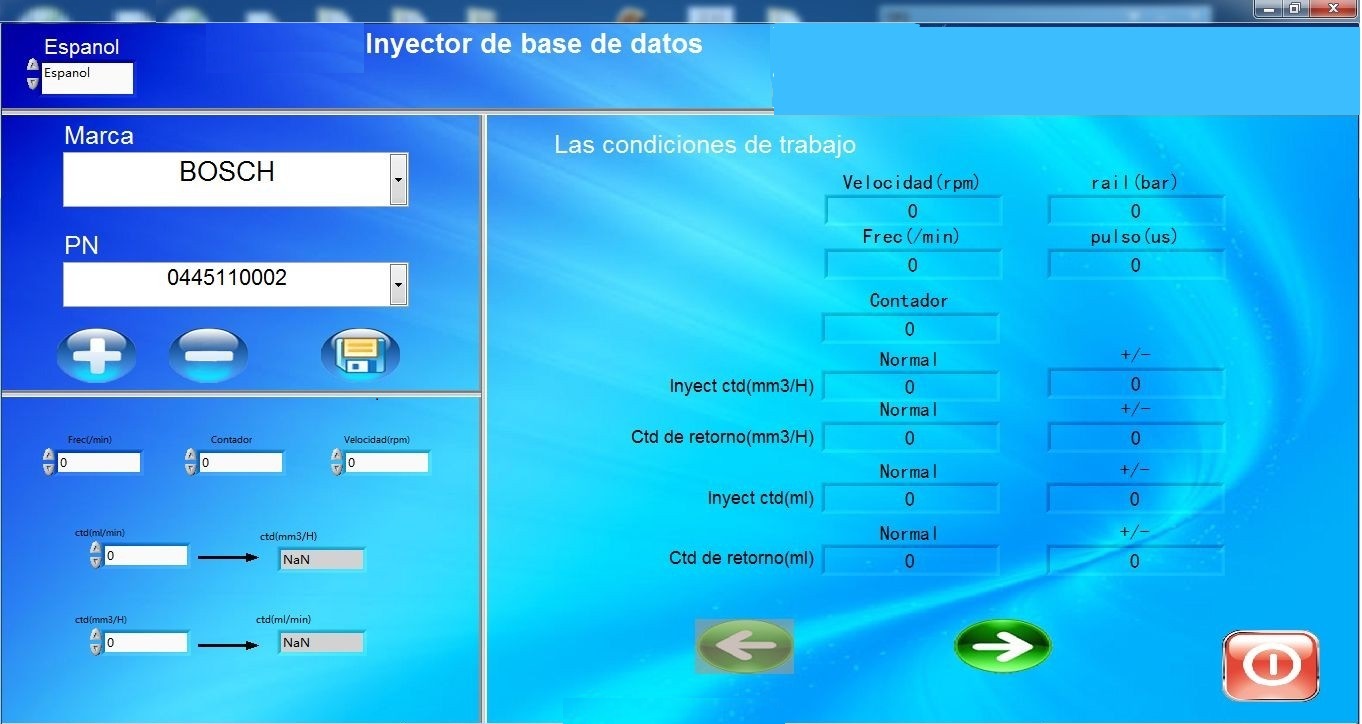

Also can do Spanish Display Controller:
Spanish display for CRS-4000 in computer
