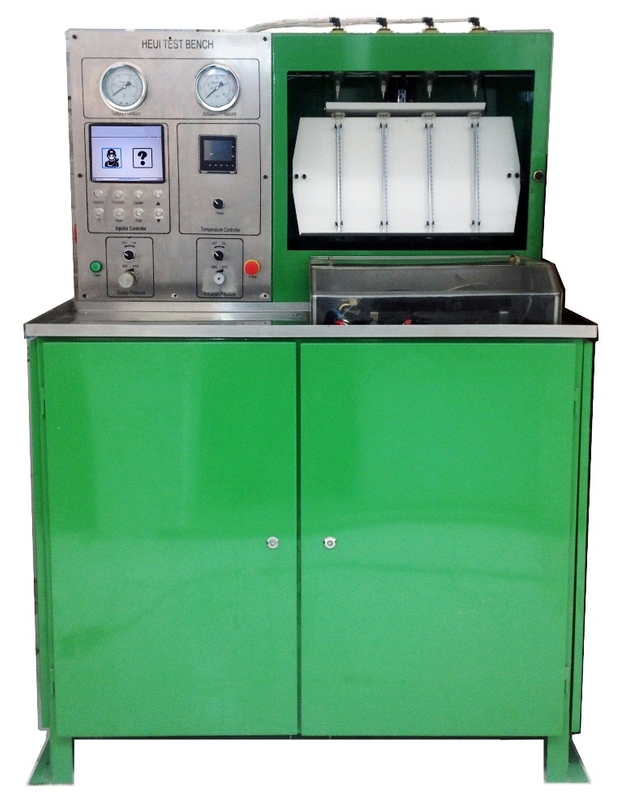

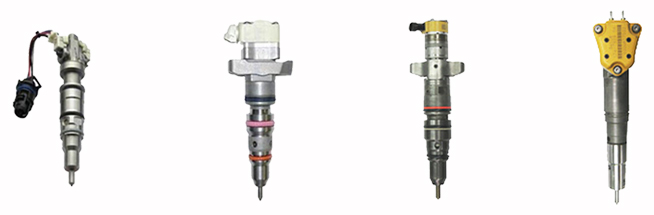

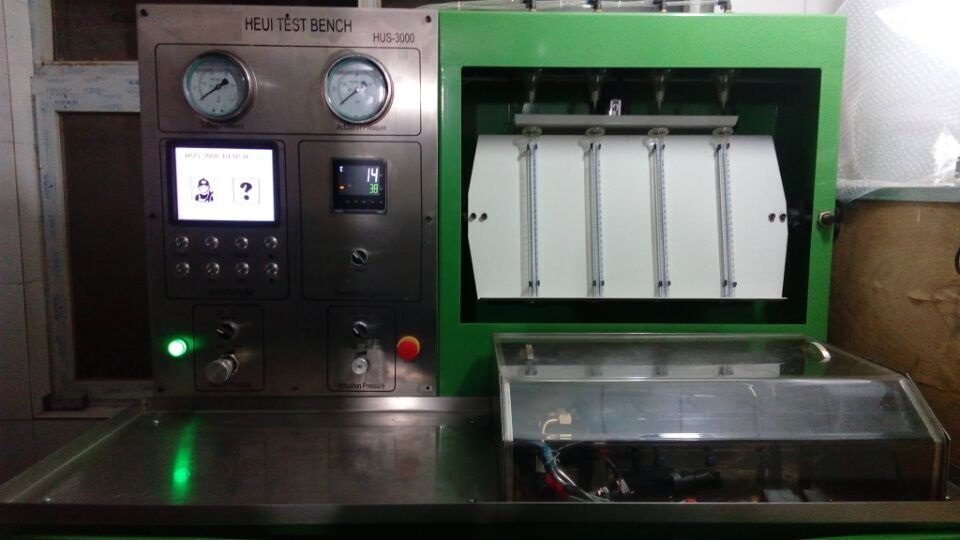

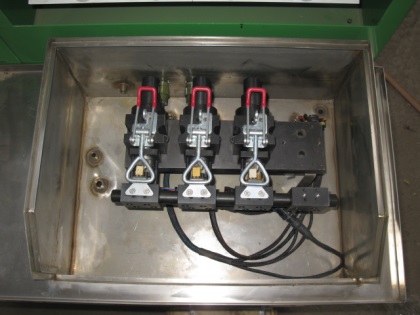

The HEUI test bench is designed to test up to four HEUI injectors, which are equipped on the following engines:
-Adapting Kits for Testing One CAT 3408 HEUI Injector
-2015 new type can test 4pcs injector at the same time
Function:
1. Measurement fuel delivery of four HEUI injectors
2. Sealing test for injector upper seat of the solenoid control valve
3. Can test 4pcs injectors at same time.
Specification:
1. AC Power: 3-Phase, 5kw, 380V/50Hz or 230V/60Hz or 460V/60Hz
2. Drive System for Actuation Pump.
(1). 7.5kw AC Induction Pump
(2). VFD (Variable Frequency Drive) Motor Controller
3. Actuation Pump
4. Pressure Range of Actuation Oil: 0~3000psi (0~210bar)
5. Test Oil Low Pressure Supply:0~60psi (0~4bar)
6. Test Oil Tank Capacity: 10.5US gallons (40 liters)
7. Test Oil Temperature Control:
(1). Range: 30~50℃ (2). Accuracy: +/- 1℃ (3). Digital Display
8. Test Oil
(1). The HEUI test bench is designed to run on single test oil for both oil injection and high- pressure actuation to HEUI injectors.
(2). The test oil should meet ISO4113 standard.
9. Injection Quantity Measurement: Two Groups of 4 Graduates, 45/150cc
10. Full Functioned HEUI Control Module
11. Test Oil Filtration: 5µm, Full Flow
Main Features of HEUI Control Module
Adjustable Range of Equivalent Engine Speed of Fuel Injection 0~4000rpm
Adjustable Range of Injection Pulse Width 0~6ms
Fuel Delivery Measurement Counter Range 1~9999

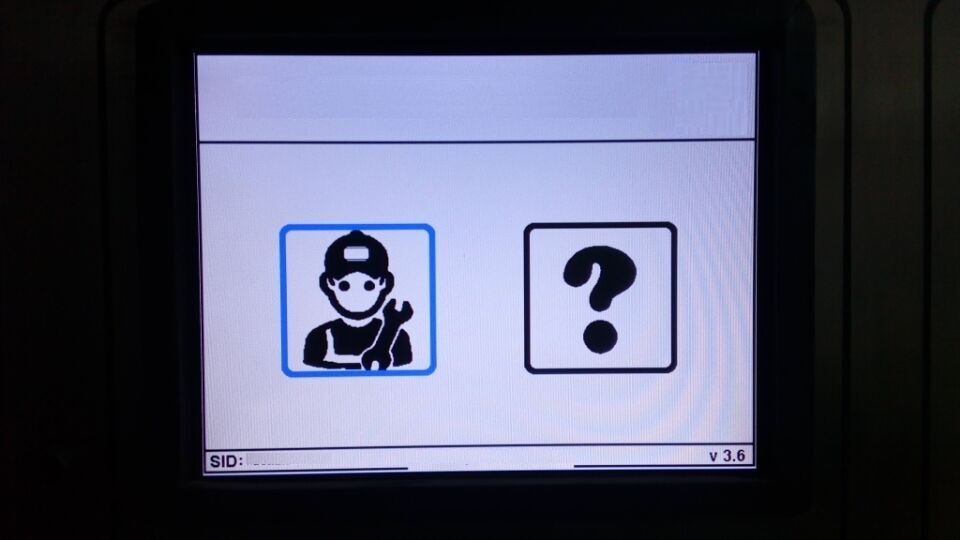

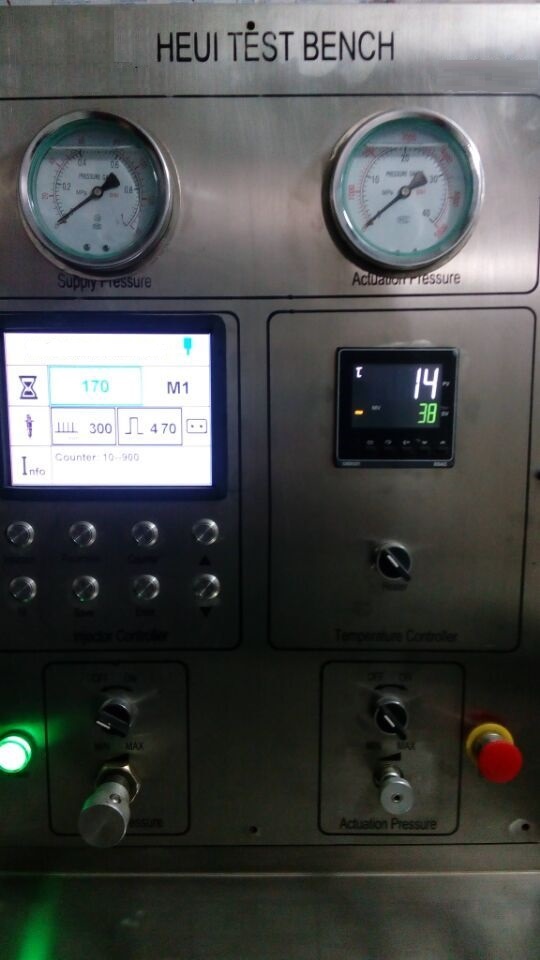

Simple, User-Friendly Display and Mini-Key Pad
Optional Add-on and Accessories:
1. Refrigerator type cooler for fuel temperature control
2. Adapting Kits for Nozzle Spary Patten Analysis
3. Injector Assembly Tool Kits
