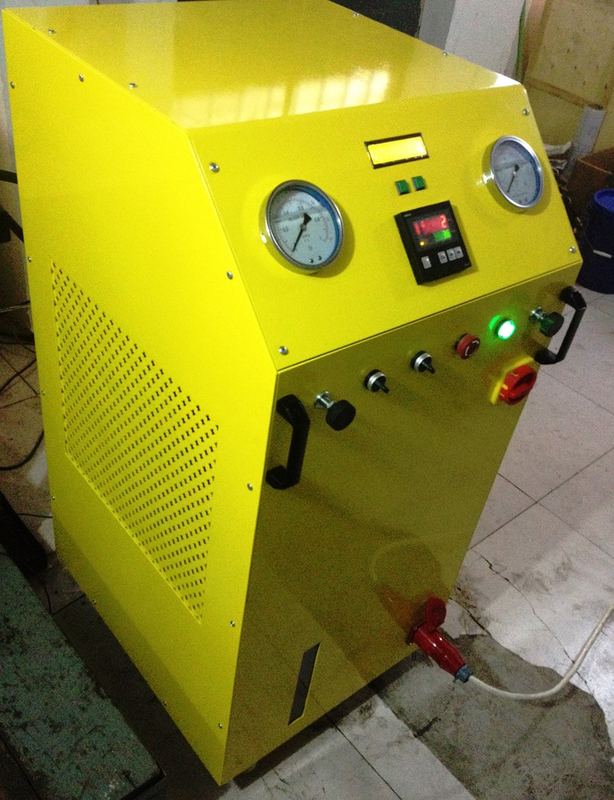

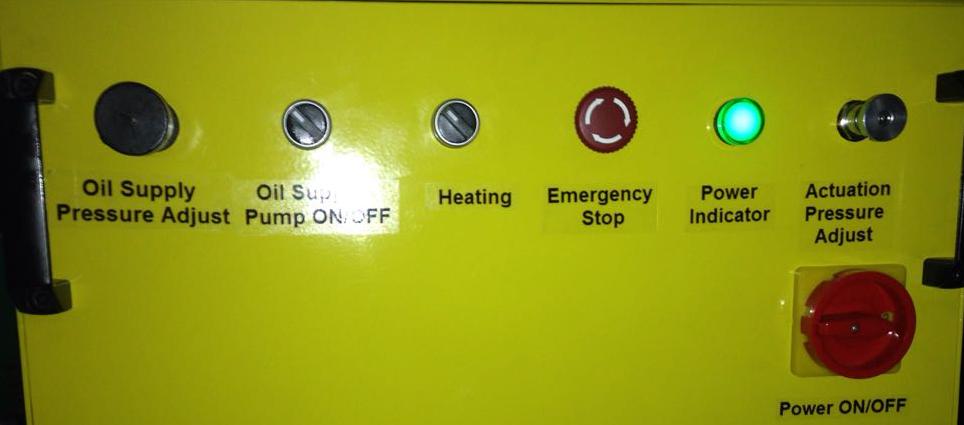

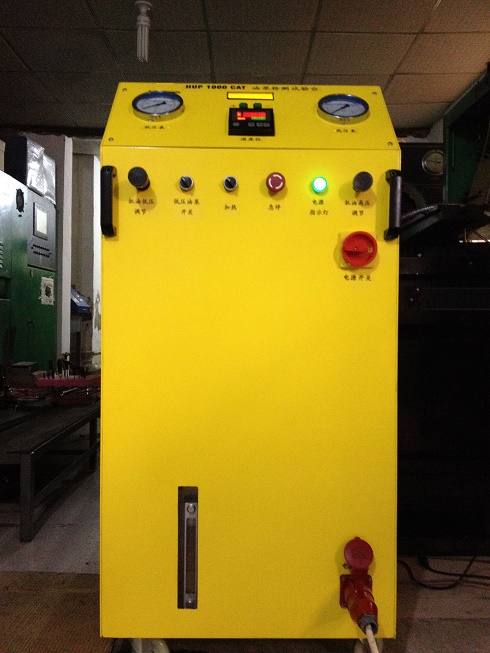

HUP-100 High Pressure Oil Pump Tester for CAT HPOP Testing

HUP-100 High Pressure Oil Pump Tester is an add-on equipment to test high pressure oil pump (HPOP) on CAT HEUI engines. The HPOP pump is driven by a traditional diesel high pressure pump test bench. HUP-100 provides oil supply, controls the oil actuation pressure from the HPOP pump, and measure the oil flow rate.

Quantity:
  • HUP-100
  • FOTMA
  • 9031809090
  • 属性值
HUP-100 High Pressure Oil Pump Tester is an add-on equipment to test high pressure oil pump (HPOP) on CAT HEUI engines.

The HPOP pump is driven by a traditional diesel high pressure pump test bench. HUP-100 provides oil supply, controls the oil actuation pressure from the HPOP pump, and measure the oil flow rate.

Application
To test a High pressure oil pump for Caterpillar HEUI engines.

Features
A target Caterpillar HEUI HPOP pump is driven by a traditional diesel high pressure pump test bench.
Mounting bracket and shaft coupling for CAT C&/C9 actuation pump are provided

Low pressure oil supply, including
Oil tank
Electrical motor driven gear pump
Oil filter
Supply oil pressure regulator, 2-10bar
Supply oil pressure gauge
Quick connection port on the side panel to feed oil to the target HPOP pump

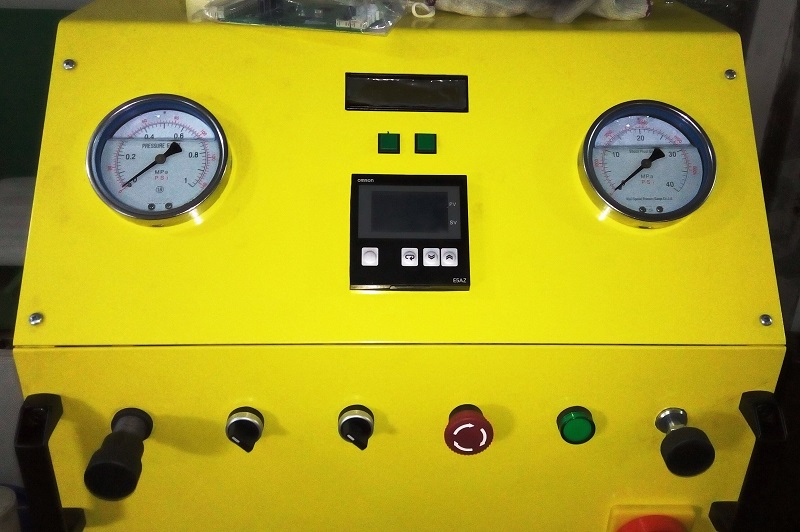

High pressure regulation
High pressure oil flow from the target HPOP pump output via. a quick connection port on HUP-100 side panel
Actuation pressure regulator, 0-250bar
Actuation pressure gauge
Flow meter at downstream of the pressure regulator
Heat exchanger with cooling fan to cool the hot oil before flowing back to oil tank

Oil Temperature controller
Set target oil temperature
Control ON/OFF for the cooling fan

Electronic module
Variable PWM signal to driver solenoid on the CAT HEUI HPOP pump, 0-100%
Oil flow rate measurement, Liter/min
LCD display
Key-pad

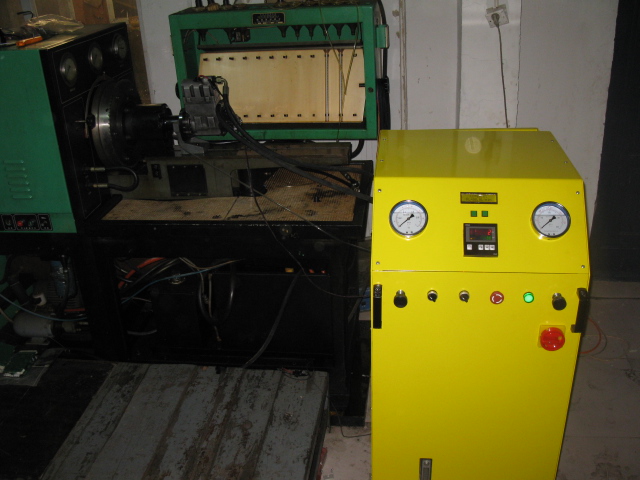

HUP-100 with Test Bench
HUP-100 with test bench.jpg

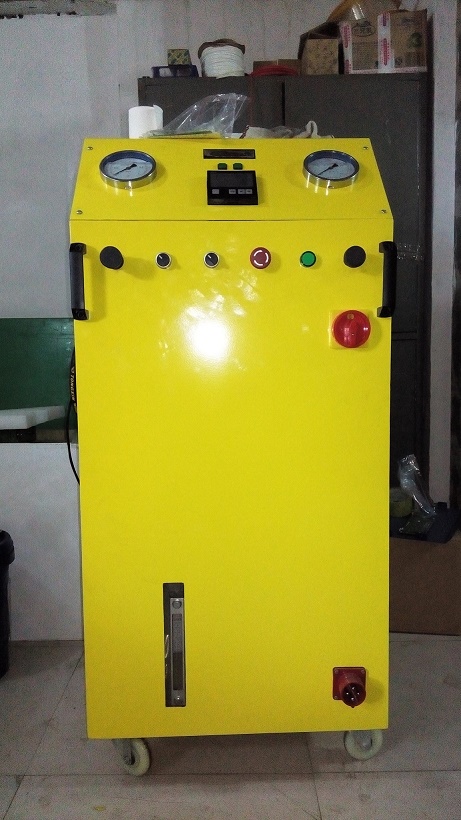

HUP-100 Oil Pump Tester (5)

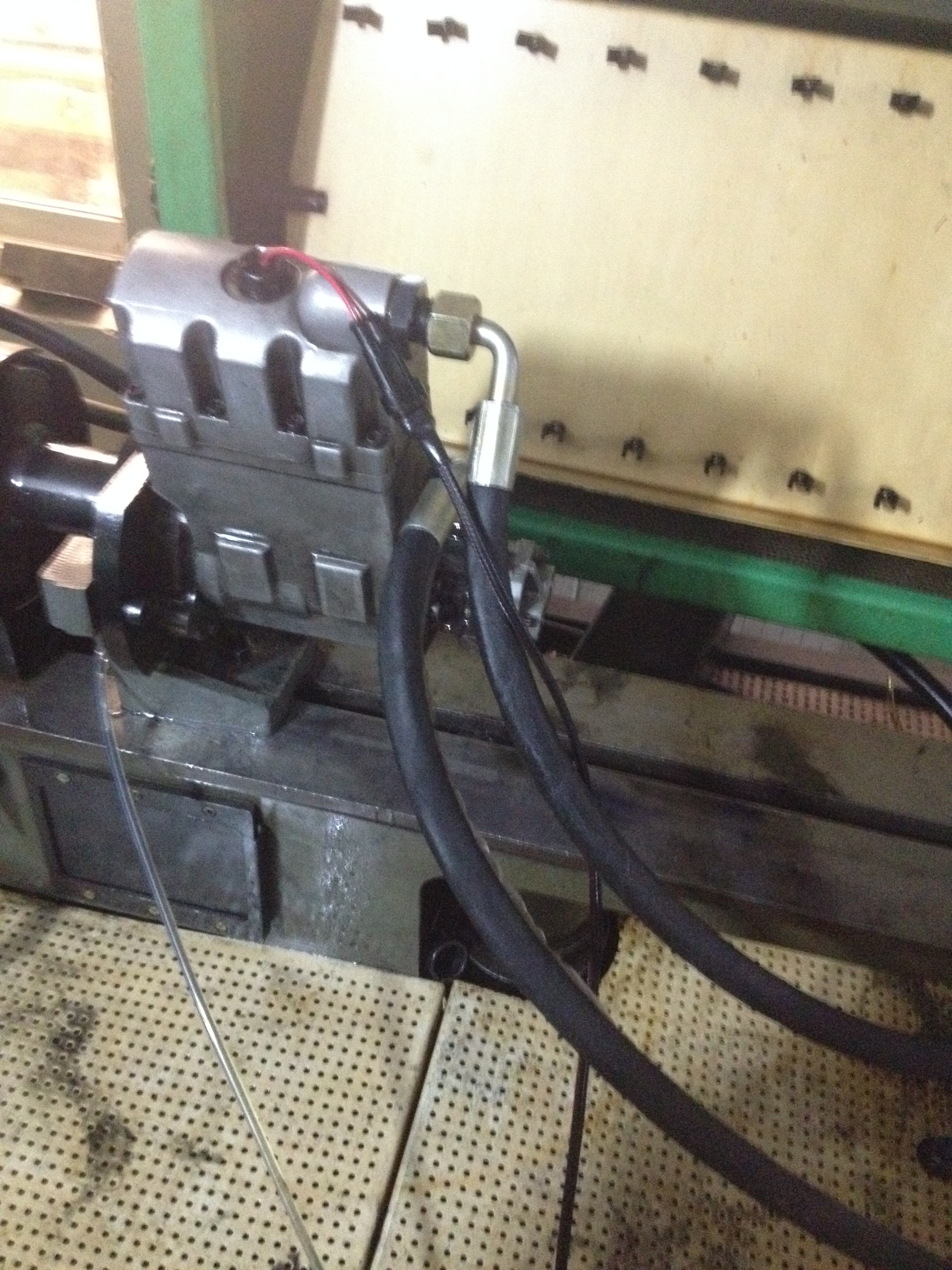

HUP-100 Connection on Test Bench
HUP-100 connection.jpg
